Max Torque 15kg/m Safety Chucks for Air Shaft and Manual Brake Direct Supply from Chinese
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | STEKI-SKW |
Payment & Shipping Terms:
| Price: | $450.00 - $950.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail:15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month other series 28# slip Safety Chucks available |
|
Detail Information |
|||
| Safety Chucks Chuck Model:: | SKW-28 | Safety Chucks Warranty:: | 12 Months |
|---|---|---|---|
| Safety Chucks Maximum Load Weight:: | 700kg | Safety Chucks Max Torque:: | 15kg/m |
| Safety Chucks Real End Permissible Size:: | 22-30mm | Safety Chucks Slip Stroke:: | 50mm |
| Port: | Shanghai Or Fuzhou | ||
Product Description
Specifications
slip Safety Chucks
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available

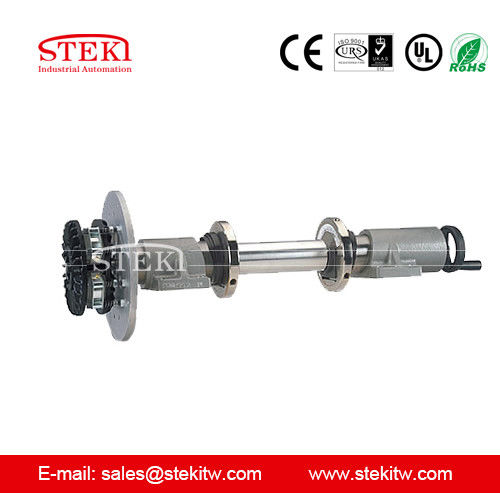

STEKI 2018 Combination of safety chucks for air shaft and manual brake Chinese factory directly supply
Introduction:

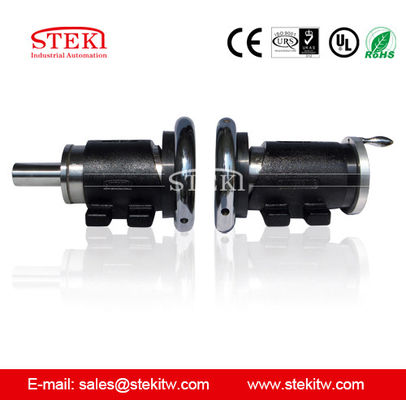

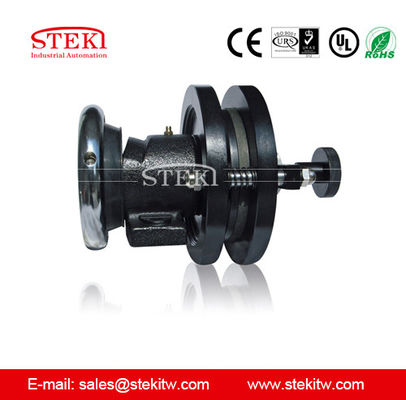

Safety chuck also called safety stirrup, can be divided into pedestal and flange type, or we can say, horizontal and vertical installation. Our standard safety chuck has the design of security, economy and easy installation, can provide swift, safe, true and simple shaft coupling and separation action.
Safety chuck transmission part specification and dimension can be designed and made according to different machinery specifications. The whole structure is outstandingly rigid, can bear high torque, no worry for loosening away in safe running. Sliding safety chuck can allow operator to have axial adjustment by hand wheel in machine running. Axial support spring can assure roller safety and accurate torque transmission.
1. The whole structure for safety chuck is outstandingly rigid, can bear high torque, no worry for loosening away in safe running.
2. Precise process accuracy can assure exact locating, reel holding mouth adopts special heat processing technology.
3. VT-type reel holding mouth can be provided, which will extend its use life greatly.
4. Special excellent alloy steel material will be adopted with great durability.
5. Nickeling and hardening treatment for mouth can bring high stiffness and robustness, which can assure favorable performance in high load and high speed.
6. Reasonable tolerance design on mouth parts can assure smoothness and continuousness in torque transmission, which can extend greatly safety performance for machinery.
