Pneumatic 4-Jaw Hand Drill Chuck Air Shaft Support Flange for Converting Machines

1. introduction:

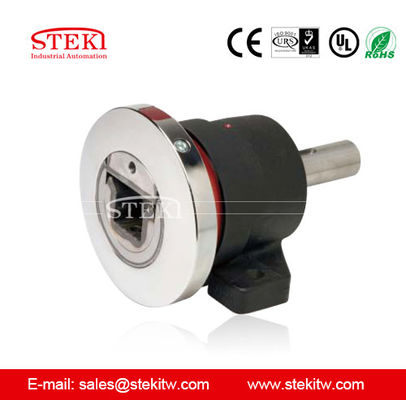

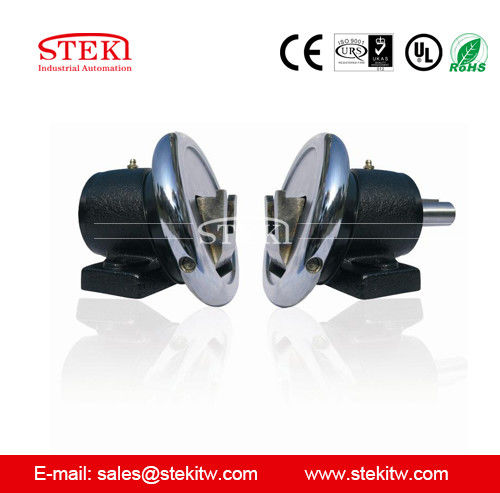

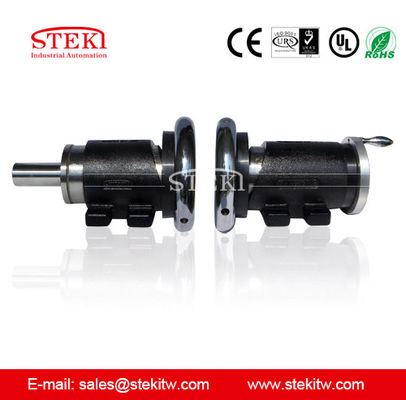

Safety chuck also called safety stirrup, can be divided into pedestal and flange type, or we can say, horizontal and vertical installation. Our standard safety chuck has the design of security, economy and easy installation, can provide swift, safe, true and simple shaft coupling and separation action.

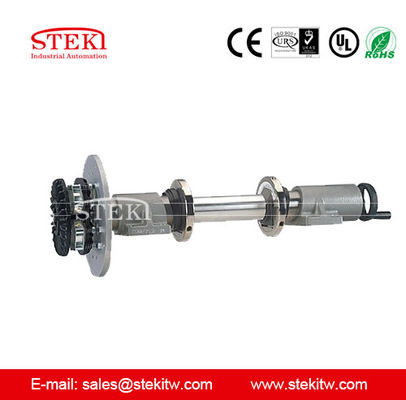

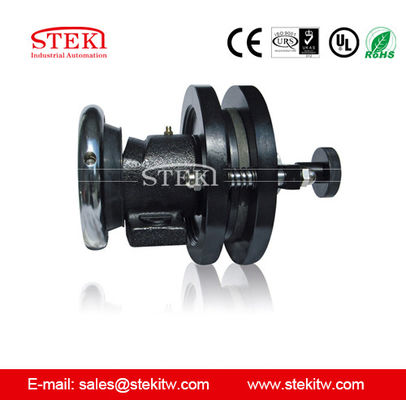

Safety chuck transmission part specification and dimension can be designed and made according to different machinery specifications. The whole structure is outstandingly rigid, can bear high torque, no worry for loosening away in safe running. Sliding safety chuck can allow operator to have axial adjustment by hand wheel in machine running. Axial support spring can assure roller safety and accurate torque transmission.

1. The whole structure for safety chuck is outstandingly rigid, can bear high torque, no worry for loosening away in safe running.

2. Precise process accuracy can assure exact locating, reel holding mouth adopts special heat processing technology.

3. VT-type reel holding mouth can be provided, which will extend its use life greatly.

4. Special excellent alloy steel material will be adopted with great durability.

5. Nickeling and hardening treatment for mouth can bring high stiffness and robustness, which can assure favorable performance in high load and high speed.

6. Reasonable tolerance design on mouth parts can assure smoothness and continuousness in torque transmission, which can extend greatly safety performance for machinery.

2. Application field:

1. Packing and wrapping systems: packing machine, strapping machines, wrapping machinery.

2. Textile machinery: fiber twisters, treatment machines, weaving machines

3. Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines

4. Machine tool systems: lathes,

5. Millers, steel extruders, CNC lathes, specialized machinery

6. Transportation equipment: hoists, feeders, conveyors, rollers, winders

7. Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

8. Printing systems: conveyors and in-feeders

9. Wood-working systems: saws, wood-working machine, laminators

10. Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers

11. Testing systems: lab machines, durability testers, measuring systems

12. Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines

13. Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.

3. Catalogues
