TWINFLEX Oil Hydraulic Disc Brake for Crane Customized 20mm Disc Thickness Brake Disc
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | DBM-07 20 |
Payment & Shipping Terms:
| Price: | $250.00/pieces >=1 pieces |
|---|---|
| Packaging Details: | corrugated carton packing. wooden packing if necessary <br>1pcs/ carton |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Oil Hydraulic Disc Brake | Disc Thickness: | 20mm |
|---|---|---|---|
| Port: | Shanghai Or Fuzhou | ||
Product Description

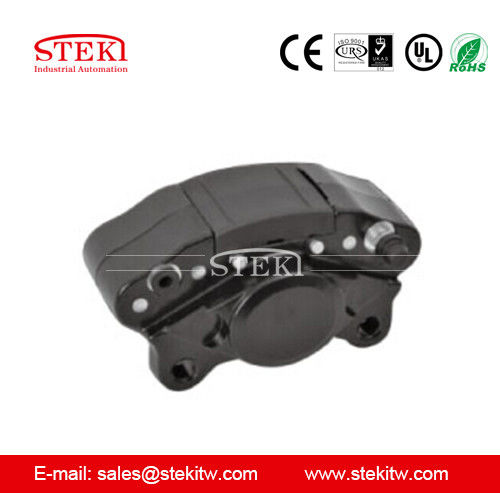

TWINFLEX like hydraulic brake for crane with customized brake disc
DBM20
| TYEP | DBM20 |
| CYLINDER MODEL | 2 1/8 |
| CYLINDER AREADF | 22.88CM2 |
| OIL QUANTITY | 2.5C.C |
| DISC THICKNESS | 20MM |
| USABLE DISC DIA | 200MM |
| MAX AIR PRESSURE | 5MPA |
| PADS CLEARANCE | 7MM |
| WEIGHT | 5.5KGS |
is mainly powered by braking oil, and can also be powered by air-actuated matched with hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicate right or left before landing your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please informe us in advance.
Note:
"R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by the left side.
