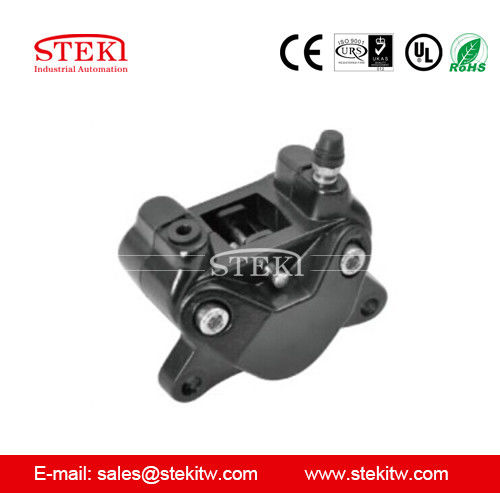

Oil Hydraulic Disc Brake The Essential Component for Mill Roll Stands at Mayr Chinese
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | DBM-06 01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $247.00 - $286.00/pieces |
| Packaging Details: | Conrrugated carton packing. <br>1pc / carton <br>can be customized |
| Supply Ability: | 10 Piece/Pieces per Day |
|
Detail Information |
|||
| Type: | Oil Hydraulic Disc Brake | Dia: | 200mm |
|---|---|---|---|
| Thickness: | 10mm | Cylinder Size: | 22.88cm2 |
| Port: | Shanghai Or Fuzhou | ||
Product Description
Oil hydraulic brake to exiting used mill roll stands alternative Mayr Chinese factory directly supply
DBM10
| type | DBM10 |
| CYLINDER MODEL | 2 1/8 |
| CYLINDER AREADF | 22.88CM2 |
| OIL QUANTITY | 2.5C.C |
| DISC THICKNESS | 10MM |
| USABLE DISC DIA | 200MM |
| MAX AIR PRESSURE | 5MPA |
| PADS CLEARANCE | 7MM |
| WEIGHT | 4.5GKS |
is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please informe us in advance.
Note:
"R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by the left side.
