NOSEN STEKI 2019 FBN0.6-40 36V High Precision Dry Single Plate Electric Brake Designed
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $17.00 - $180.00/pieces |
| Packaging Details: | 1 pc/carton, wooden packing can be customized |
| Supply Ability: | 100 Piece/Pieces per Day |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Power:: | DC24V (W) At 20degree |
|---|---|---|---|
| Application:: | Machinery | Port: | Fuzhou, Shanghai |
Product Description

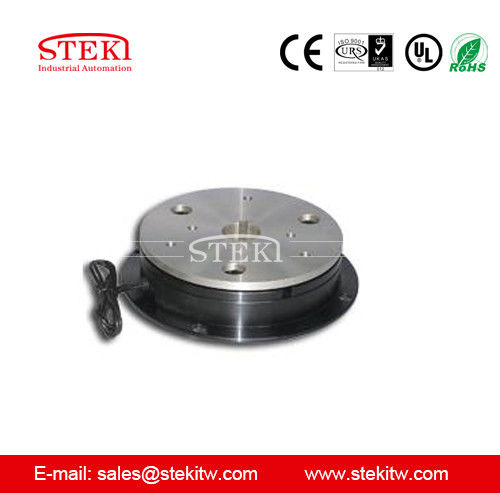

STEKI 36V high precision quality dry single plate electric brake electromagnetic brake alternative NOSEN
MODEL:FBN0.6-40
| MODEL | FBN0.6 | FBN1.2 | FBN2.5 | FBN5 | FBN10 | FBN20 | FBN40 |
| STATIC FRICTION TORQUE | 0.6 | 1.2 | 2.5 | 5 | 10 | 20 | 40 |
| DYNAMIC FRICTION TORQUE | 0.5 | 1.0 | 2.0 | 4.0 | 8 | 16 | 32 |
| POWER DC24V W AT 20DEGREE | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| WEIGHT | 0.36 | 0.68 | 1.19 | 2.13 | 4.12 | 7.1 | 14 |
| MAXIMUM SPEED | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
FBN electromagnetic brake (inner attaches guide pedestal), is one kind of thin brake. It has the similar fine performance as the clutch, especially the response performance is good, which can have a strong power in condition of urgent halt. It can be directly installed and fixed, and you can use the flange to install the surface of stator. Due to the shaft size of this model is small, therefore, it does not need oversize installment space.
