24VDC Mitsubishi Magnetic Powder Clutch 2A Current and 1800rpm Max. Speed by STEKI 2019
Product Details:
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Price: | $200.00 - $899.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail:15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month other series Magnetic Powder Clutch available |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Printing Shops | Magnetic Powder Clutch Model:: | PKC10 |
|---|---|---|---|
| Magnetic Powder Clutch Warranty:: | 12 Months | Magnetic Powder Clutch Current:: | 2A |
| Magnetic Powder Clutch Rated Torque:: | 100Nm | Magnetic Powder Clutch Max. Speed:: | 1800rpm |
| Magnetic Powder Clutch Power:: | 48W | Magnetic Powder Clutch Rated Voltage:: | 24V |
| Port: | Shanghai Or Fuzhou | ||
Product Description
Specifications
Magnetic Powder Clutch
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available

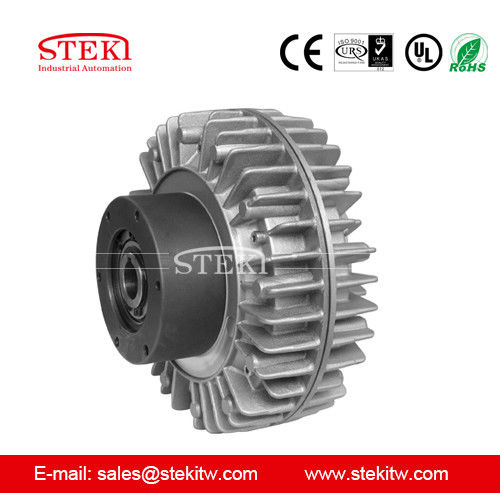

STEKI 2019 hollow shaft powder clutch high performance 24VDC alternative Mitsubishi
Introduction:
A magnetic particle clutch is a special type of electromagnetic clutch which does not use friction plates. Instead, it uses a fine powder of magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to one shaft, to a rotor attached to the other shaft.
When a magnetic field is applied to the powder, it forms chains connecting the disc and rotor. The strength of the chains depends on the strength of the magnetic field.
Some advantages over a friction plate clutch include:
•it doesn't exhibit stick-slip phenomenon or stiction
•the torque may be easily and quickly controlled
•it is more resistant to wear
•it may be used for continuous slip applications
•it has a very fast response time
The products are widely used in winding and unwinding starting/braking control, stamping startup, overload protection, position control, speed control, tension control, artificial load and relevant fast control systems.
