10mm Plate Thickness Look no Further than STEKI 2018 Compressed Air Brake for Machinery
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | DBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $103.00 - $113.00/pieces |
| Packaging Details: | Corrugated carton packing. <br>1 pc / carton. <br>Can be packed as required. |
| Supply Ability: | 500 Piece/Pieces per Week |
|
Detail Information |
|||
| Application: | Machinery | Thickness For Plate: | 8mm,10mm,25mm |
|---|---|---|---|
| Port: | Shanghai Or Fuzhou | ||
Product Description

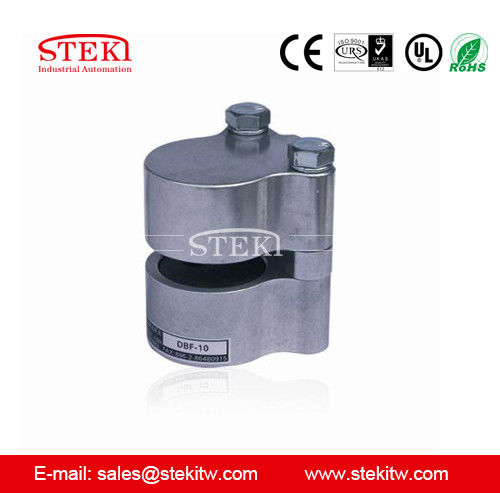

STEKI 2018 compressed air brake
Model: DBF-8 / DBF-10
| TYPE | DBF-8 | CBF-10 |
| DISC THICKNESS | 8MM | 10MM |
| DISC DIA | 220MM | 220MM |
| MAX PRESSURE | 0.7MPA | 0.7MPA |
| RETROTHRUST(6kg/cm2) | 77KG | 77KG |
| BAROMETIC AREA | 19.63CM2 | 19.63CM2 |
| PADS CLEARANCE | 7MM | 7MM |
| WEIGHT | 1KGS | 1KGS |
It is a type of small brake which bottom is stationary, adapts differently way of installation, also can use in the brake of beeline movement. Big friction area can extend the cycle of maintenance and longevity destiny line. If it installs certain brakes on one disc, torque also enlarge along with it certain time.
