STEKI Tension Controller Model LTC002 for Textile Machine Automatic Tension Detection
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | LTC |
Payment & Shipping Terms:
| Price: | $112.00 - $700.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail: 15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month other tension controller available |
|
Detail Information |
|||
| Tension Controller Model:: | LTC002 | Port: | Shanghai Or Fuzhou |
|---|---|---|---|
Product Description
Specifications
tension controller
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available

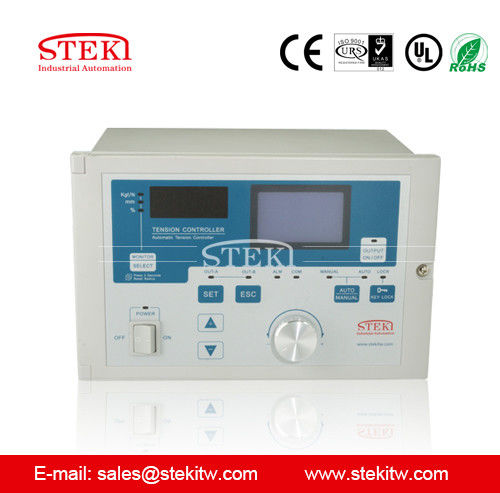

STEKI 2018 Textile printing machine Automatic tension controller tension detector
input power: AC85~264V,50/60HZ
output: DC 24V/0~4A(magnetic powder clutch/ brake)
Multiple installation modes: floor mode , wall-mounted mode and inlay mode
operating environment: -5℃-40℃ relative humidity < 85%

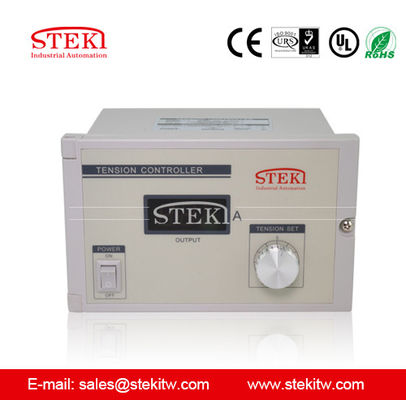

Hand tension controller means getting tension control by manually staged adjusting the exciting current of clutch/brake with the changes of roll diameter in winding and unwinding. Besides, hope when you use some devices like programmable controller D/A converter to control the exciting current of clutch/brake, you can switch in directly the external voltage (0-10V) to hand tension controller and control automatically. Example is like top right corner shown as:
