1kgs STEKI 2018 Textile Machine Hand Tension Controller/Tension Detector and Powder Brake Clutch
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | LTC002 |
Payment & Shipping Terms:
| Price: | $80.00 - $90.00/pieces |
|---|---|
| Packaging Details: | 1pcs/carton, wooden carton can be customized |
| Supply Ability: | 50 Piece/Pieces per Week |
|
Detail Information |
|||
| Weight: | 1kgs | Port: | Shanghai Or Fuzhou |
|---|---|---|---|
Product Description

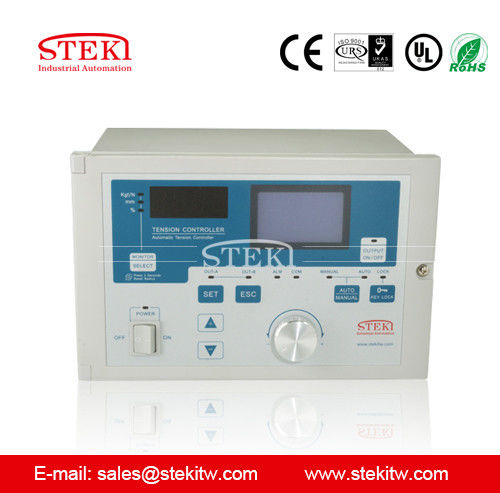

STEKI 2018 textile machine tension controller/tension detector and powder brake clutch
LTC002
1.Technology & material from TaiWan
2.Manufacture with 30 years' experience
3.Warranty--1 year
4.OEM available
input power: AC85~264V,50/60HZ
output: DC 24V/0~4A(magnetic powder clutch/ brake)
Multiple installation modes: floor mode , wall-mounted mode and inlay mode
operating environment: -5℃-40℃ relative humidity < 85%
Hand tension controller means getting tension control by manually staged adjusting the exciting current of clutch/brake with the changes of roll diameter in winding and unwinding. Besides, hope when you use some devices like programmable controller D/A converter to control the exciting current of clutch/brake, you can switch in directly the external voltage (0-10V) to hand tension controller and control automatically. Example is like top right corner shown as:
