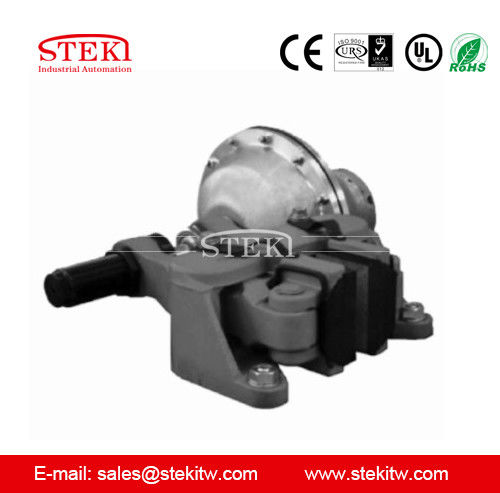

STEKI 2024 Horizontal Type DBH-F Model Disc Spring Brake with 0.5Mpa Max Air Pressure
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $112.00 - $249.00/pieces |
|
Detail Information |
|||
| Warranty: | 6 Months | Applicable Industries: | Machinery Repair Shops, Printing Shops |
|---|---|---|---|
| Weight (KG): | 10 | Showroom Location: | None |
| Video Outgoing-inspection: | Not Available | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing | Disc Spring Brake Model Number: | DBH-104F |
| Disc Spring Brake Type:: | Horizontal | Disc Spring Brake Colour:: | White,Black |
| Disc Spring Brake Thickness:: | 10-12.7mm | Disc Spring Brakediameter:: | >200mm |
| Disc Spring Brake Weight:: | 9kg | Disc Spring Brake Max Air Pressure:: | 0.5Mpa |
| Disc Spring Brake Retrothrust:: | 300kg | Disc Spring Brake Friction Pad Abrasion:: | 7mm |
| Disc Spring Brake Warranty:: | 12 Months | ||
Product Description
Specifications
DBH-F disc spring brake
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available
DBH-F Disc Spring Brake
Introduction;
DBH/DBG series is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance.
Note: "R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by left.
This type of brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.
