Max Air Pressure 0.5Mpa Pneumatic Brake DBH-104F Model The Perfect Fit for Your Business
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | STEKI-DBH-F |
Payment & Shipping Terms:
| Price: | $112.00 - $249.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail: 15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month customized pneumatic brake abouts 20 days |
|
Detail Information |
|||
| Pneumatic Brake Model Number: | DBH-104F | Pneumatic Brake Type:: | Horizontal |
|---|---|---|---|
| Pneumatic Brake Colour:: | White,Black | Pneumatic Brake Thickness:: | 10-12.7mm |
| Pneumatic Brake Diameter:: | >200mm | Pneumatic Brake Weight:: | 9kg |
| Pneumatic Brake Max Air Pressure:: | 0.5Mpa | Pneumatic Brake Retrothrust:: | 300kg |
| Pneumatic Brake Friction Pad Abrasion:: | 7mm | Pneumatic Brake Warranty:: | 12 Months |
| Port: | Shanghai Or Fuzhou | ||
Product Description
Specifications

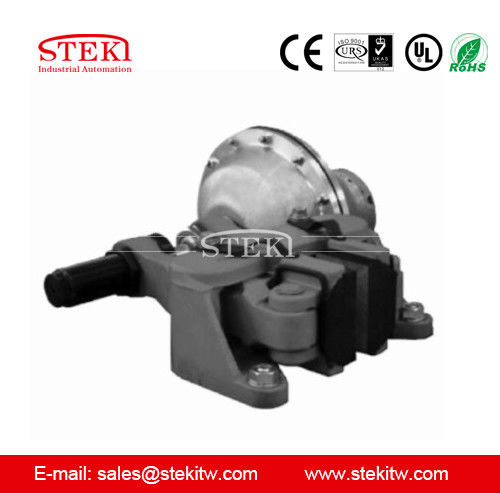

DBH-F disc spring brake pneumatic brake
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available
DBH-F Disc Spring Brake pneumatic brake
Introduction;
DBH/DBG series is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance.
Note: "R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by left.
This type of brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.
