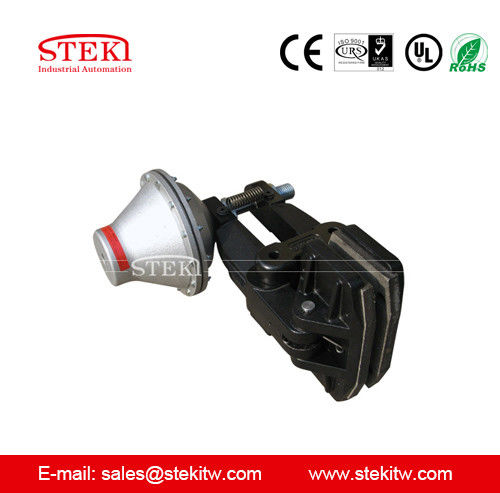

18.2kg Weight Industrial Horizontal Type Air Disc Brake for STEKI 2020 DBHG-F Model
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Price: | $112.00 - $562.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail: 15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month customized disc spring brake abouts 20 days |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
|---|---|---|---|
| After Warranty Service: | Online Support | Local Service Location: | None |
| Air Disc Brake Model Number: | DBHG-255F | Air Disc Brake Type:: | Horizontal |
| Air Disc Brake Colour:: | White,Black | Air Disc Brake Thickness:: | 25mm |
| Air Disc Brake Diameter:: | >500mm | Air Disc Brake Weight:: | 18.2kg |
| Air Disc Brake Max Air Pressure:: | 0.5Mpa | Air Disc Brake Retrothrust:: | 550kg |
| Air Disc Brake Friction Pad Abrasion:: | 5mm | Air Disc Brake Warranty:: | 12 Months |
| Port: | Shanghai Or Fuzhou | ||
Product Description
Specifications
DBHG-F disc spring brake air disc brake
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available
DBHG-F Disc Spring Brake air disc brake
Introduction;
DBH/DBG series is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance.
Note: "R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by left.
This type of brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.
