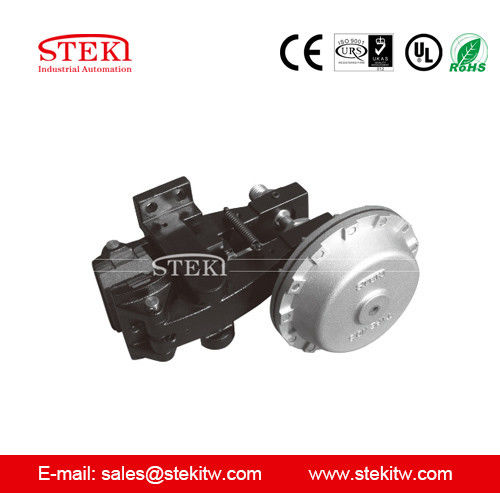

Horizontal Pneumatic Brakes DBHF Type for Precise and Consistent Braking Performance
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Price: | $100.00 - $309.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail: 15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month customized pneumatic brakes abouts 20 days |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Printing Shops | Pneumatic Brakes Model Number: | DBHF-133 |
|---|---|---|---|
| Pneumatic Brakes Type:: | Horizontal | Pneumatic Brakes Colour:: | White,Black |
| Pneumatic Brakes Thickness:: | 13mm | Pneumatic Brakes Diameter:: | >300mm |
| Pneumatic Brakes Weight:: | 9.5kg | Pneumatic Brakes Max Air Pressure:: | 0.7Mpa |
| Pneumatic Brakes Compression Ratio:: | 1.86 | Pneumatic Brakes Friction Pad Abrasion:: | 6mm |
| Pneumatic Brakes Warranty:: | 12 Months | Port: | Shanghai Or Fuzhou |
Product Description
Specifications
DBHF pneumatic brakes
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available
DBH Air Disc Brake
Introduction;
DBH/DBG series is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance.
Note: "R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by left.
This type of brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.
