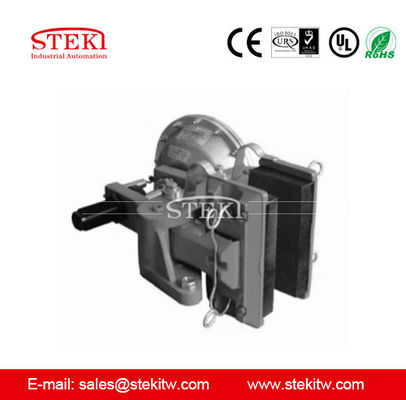

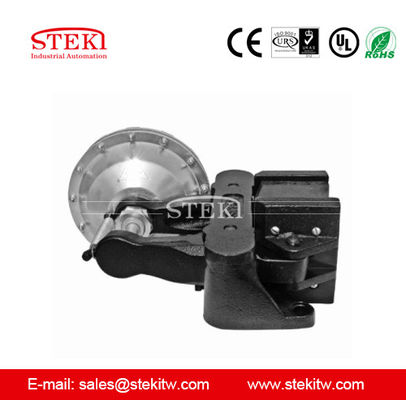

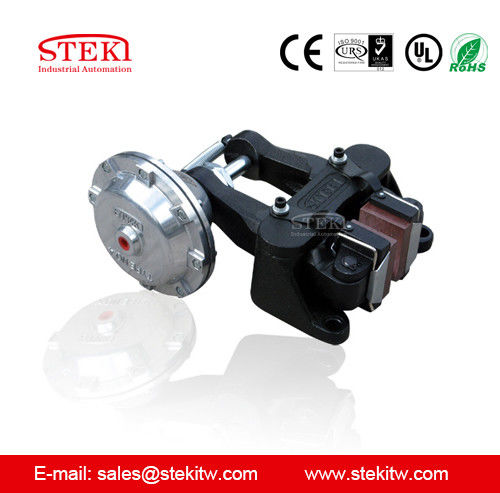

STEKI 2018 DBH-203 air brake Disc Horizontal type alternative with customized design
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Price: | $232.00 - $265.00/pieces |
|---|---|
| Packaging Details: | Packaging: Carton or wooden case, or according to customers' demands <br>Delivery Detail: 15 days after payment arrived |
| Supply Ability: | 500 Piece/Pieces per Month customized air brake Disc abouts 20 days |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Printing Shops | Air Brake Disc Model Number: | DBH-203 |
|---|---|---|---|
| Air Brake Disc Type:: | Horizontal | Air Brake Disc Colour:: | White,Black |
| Air Brake Disc Thickness:: | 20mm | Air Brake Disc Diameter:: | >200mm |
| Air Brake Disc Weight:: | 8kg | Air Brake Disc Max Air Pressure:: | 0.7Mpa |
| Air Brake Disc Compression Ratio:: | 1.83 | Air Brake Disc Friction Pad Abrasion:: | 7mm |
| Air Brake Disc Warranty:: | 12 Months | Port: | Shanghai Or Fuzhou |
Product Description
Specifications
DBH air disc brake
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.OEM available
DBH Air Brake Disc
Introduction;
DBH/DBG series is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance.
Note: "R" model, namely does move the source to enter by right, the graphical representation is "R".
"L" model, namely does move the source to enter by left.
This type of brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.
DBH Air brake dics Options:
1.DBH-10 (10mm disc thickness) Type: DBH-103 , DBH-104 , DBH-105
2.DBH-20 (20mm disc thickness) Type: DBH-203 , DBH-204 , DBH-205
3.DBH-38 (20mm disc thickness) Type: DBH-383 , DBH-384 , DBH-385
4.DBH-38D(20mm disc thickness) Type: DBH-382D , DBH-383D , DBH-384D,DBH385D
