STEKI 2019 Machinery Conveyor Belt Air Disc Brake for Flexo Machine Advanced Technology
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $103.00 - $113.00/pieces |
| Packaging Details: | Corrugated carton packing. <br>1 pc / carton. <br>Can be packed as required. |
| Supply Ability: | 500 Piece/Pieces per Week |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | Machinery |
| Thickness For Plate: | 8mm,10mm,25mm | Port: | Shanghai Or Fuzhou |
Product Description

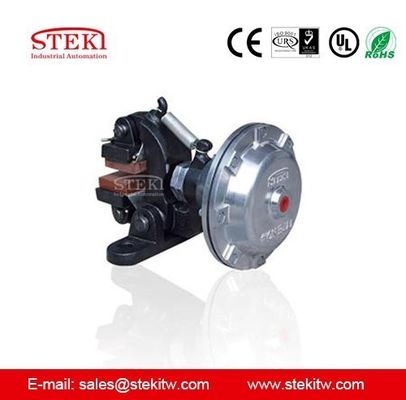

STEKI 2019 conveyor belt air disc brake for flexo machine
DBF-8
| TYPE | DBF-8 |
| DISC THICKNESS | 8MM |
| DISC DIA | 220MM |
| MAX WORKING PRESSURE | 0.7MPA |
| PUSH | 77KGS |
| BAROMETIC AREA | 19.63CM2 |
| PAD CLEARANCE | 7MM |
| WEIGHT | 1KGS |
It is a type of small brake which bottom is stationary, adopts different ways of installation, also can use in braking of beeline movement. Big friction area can extend the cycle of maintenance and longevity destiny line. If it installs certain brakes on one disc, torque also enlarge along with it in certain time.

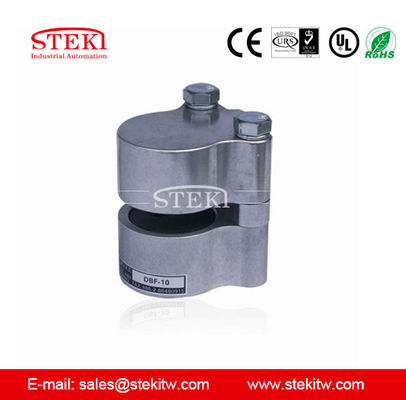

Model: DBF-8 / DBF-10
