Long History No Sparking Air Disc Brake for Tire Machinery STEKI 2018 Alternative
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
| Model Number: | DBF-8 |
Payment & Shipping Terms:
| Price: | $185.00 - $298.00/pieces |
|---|---|
| Packaging Details: | 1pcs/carton, wooden carton can be customized |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Port: | Shanghai Or Fuzhou | ||
|---|---|---|---|
Product Description

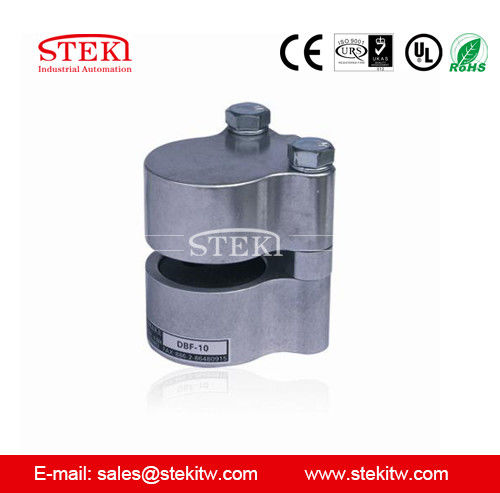

STEKI 2018 Long history high quality no sparking air disc brake for tire machinery alternative RE
DBF-8
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.Warranty--1 year
4.OEM available
| TYPE | DBF-8 |
| DISC THICKNESS | 8MM |
| DISC DIA | 220MM |
| MAX WORKING PRESSURE | 0.7MPA |
| PUSH | 77KGS |
| BAROMETIC AREA | 19.63CM2 |
| PAD CLEARANCE | 7MM |
| WEIGHT | 1KGS |
It is a type of small brake which bottom is stationary, adapts different ways of installation, also can use in the brake of beeline movement. Big friction area can extend the cycle of maintenance and longevity destiny line. If you installs certain brake on one disc, torque also enlarge along with it in certain time.
Catalogue:
Want to Know more details about this product
