Manufacturing Plant STEKI 2019 DBK20.2 Air Disc Brake for Corrugated Machinery Alternative COREMO
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | STEKI |
Payment & Shipping Terms:
| Price: | $100.00 - $500.00/pieces |
|---|---|
| Packaging Details: | 1pcs/carton, wooden carton can be customized |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Port: | Shanghai Or Fuzhou |
|---|---|---|---|
Product Description

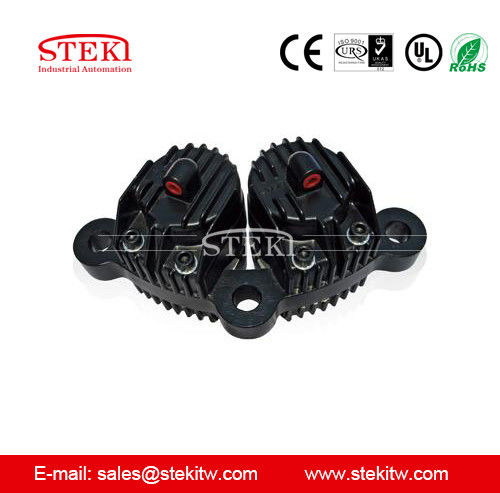

STEKI 2019 DBK20.2 air disc brake for corrugated machinery alternative COREMO
1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.Warranty--1 year
4.OEM available
DBK:
It is used in high accuracy tension control situations, can provide different torque control, has a great ability of radiation and a wide application in processing industries, such as the packing, tissue paper and corrugated paper.
You can use your own brake disc or we can make it for you, which is easy and convenient for installation and maintenance. DBK series air disc brake is already available on many machines and equipments. This model is supplied with fan and fan cover, which is your option.
DBK SERIES
1. Wide-range torque control
It adopts modular design, and installed sets of brake module are devised by real needs, in which torque control can reach larger limits.
2. Free of change
Installed sets of brake module can be changed freely even after installation.
Brake module can conduct flexible installation and control, and with changing movements, torque control range can be larger.
3. Well heat dissipation
Whole ventilated structure ensures unblocked airflow.
Pulley-structure brake disc greatly dissipates the heat generated from itself.
It works better to add a cooling fan.
4.Simple installation and great response
It characterizes in high torque and high accuracy, which can be applied to all kinds of conditions, including tension control, urgent brake and position control.
5. Quickness and convenience of changing non-asbestos friction plate.
If adds air pressure, pushes piston, it can squeeze brake disc from both sides of friction pad.
It has sensitive response to changes of air pressure, and has highly accuracy in controlling the torque.
The piston's sealed object is one kind of non-oil pouring.
Each top of brake module has manual air pressure valve, with pushing forward the opening, pushing afterward the closing. If needed torque changes greatly, movement of brake module can be changed.
The total thickness of friction pad is 10mm, and its maximum abrasion is 6mm. If it reaches maximum space, take down the two frameworks.
Please use the screwdriver to take out and replace the broken friction pad.
Fan cover is optional.
NAB MICRO SERIES
1.Small, lightweight, wide adjustable range of torque
It can adjust torque in wide range according to air pressure adjustment.
2.Reliability
It won't produce electric spark.
3.Mostly suitable to quite frequent sliding movement
It can be used in high frequency, high load, and sliding movement.
4.Stop peacefully and simply
It can stop without hinder according to air pressure adjustment.
5.Long life, easily maintain
It can be used longer due to good heat dissipation and thick friction plate.
Working theory:NAB model brake relies on air pressure to brake, return spring to release. Disc with friction plates moves towards shaft according to air pressure and touches driving disc.
The key of maintaining torque is to insert torque peg into slot of brake adapter, and thereby fix it.
